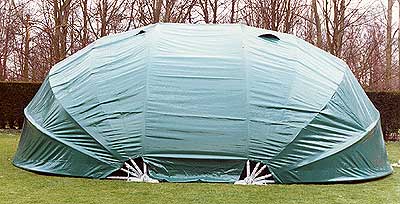

The fabric covering the rigid galvanized steel frame is U.V. & fungicidal treated polyester reinforced PVC. The same material sees reliable service on 'Curtainsider' lorry trailers in conditions far exceeding those a Bubblebarn will ever experience.
This Standard Bubblebarn easily contains two Medway two seat trikes, two Chaser single seat trikes and a MiniMax. (The door opening drops over the MiniMax).

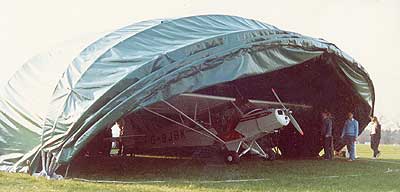

Operation couldn't be simpler: An internally fitted twin-speed hand winch (or optional battery operated electric winch) opens one entire end to full height and width (W 11.3m x H 3.8m x D 10.7m) in a couple of minutes.

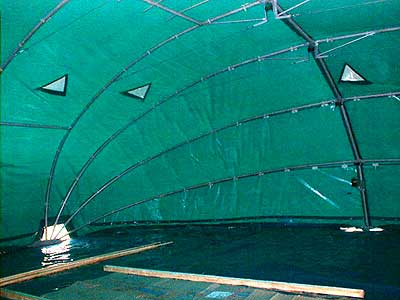

Green is the standard colour for UK use. A variety of other colours and fire retardent material are available as options. Air vents top and bottom control condensation.
Bubblebarns are suitable for all areas of UK The frame may be simply staked to the ground though we recommend the feet are bolted to concrete pads.
This example is the standard Bubblebarn and the cover is in one piece. An "extended" version is available which has a three piece cover enabling any number of extra 2m centre panels to be added.
With very low floor area costs and erection times typically less than one day a Bubblebarn represents the best value hangarage money can buy. No special tools or lifting gear are required for erection.
