AMOD AGL3080 Power

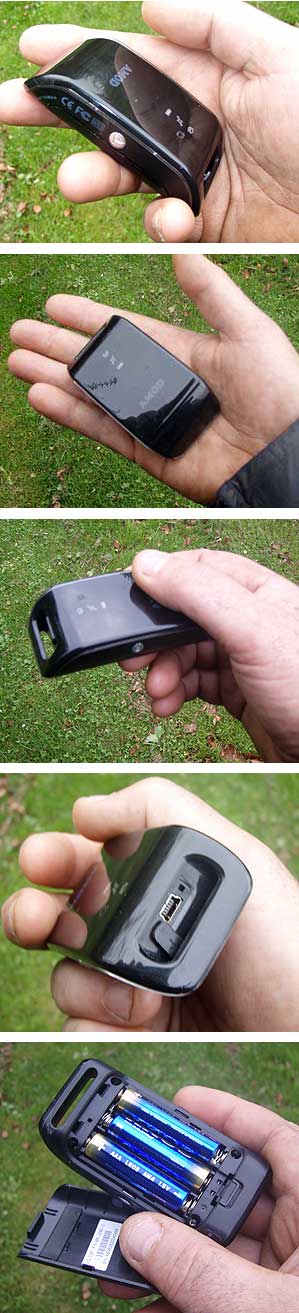

The AMOD AGL3080 Power is a GPS data logger.

Unlike other similar products, the AGL3080 Power does not need any drivers to operate. When you plug AGL3080 Power into a computer USB port, it simply appears as an external drive exactly like an ordinary memory stick.

Immediately compatible with any operating system which will read a USB memory stick: Windows, Mac, Linux, Solaris Etc.

The recorded logs are standard NMEA format which is compatible with FRDL and many other software packages.

For those familiar with the AMOD AGL3080, the AMOD AGL3080 Power is the new model introduced in 2012. It is identical to the old model except if rechargable batteries are fitted it has the new capability of charging them when plugged into a computer or USB compatible charging device.

Why does sell the AMOD AGL3080 Power? Quite simply, since we created FRDL as a compatible, fast and reliable means of using the capable but reasonably priced AMOD to record flight data in national and international FAI sanctioned Microlight and Paramotor competitions it has become the flight recorder of choice for nearly all competition pilots.

AMOD AGL 3080 power is currently out of stock at

More expected July 2013, if you have an urgent order please contact RMH.


  • Latest SiRFstar III chipset.
  • Standard USB 2.0 interface which doubles as a USB Flash Disk.
  • Works with Windows, Mac, and Linux based computers.
  • Long operating time; With rechargable batteries it charges whenever it is plugged into a USB port, with non-rechargables 10 - 30 hours with 3 x AAA batteries.
  • Memory capacity for 72 hours @ 1 second fix intervals.
  • Memory capacity for 260,000 position fixes.
  • The MARK button is fully compatible with the CIMA specification.



  • Chipset: SiRF Star III high performance low power GPS receiver IC
  • Frequency: L1 1,575.42 MHz
  • Channels: 20 parallel tracking channels
  • GPS Tracking Sensitivity: - 158 dBm
  • Antenna: built in

LED Indicators

  • Power On/Off: Amber
  • GPS Fix: Green
  • Memory Full: Red
  • Charging Indicator: Yellow


  • Storage Capacity: 128 Mbytes (1 Gbit NAND flash memory)
  • Interface: USB 2.0 full speed
  • Battery: 3 AAA standard size batteries
  • Operating Time: Around 20 hours continuous operation (3 AAA 900 mAh rechargeable batteries @ 25°c)
  • Operating Temperature: -20°c ~ 50°c
  • Storage Temperature: -30°c ~ 80°c
  • Humidity: 95% non-condensing
  • Dimensions: 90mm x 45mm x 23mm
  • Weight: ~ 50 g (not including battery)

Full instructions
